One of the leading providers of Information and Communication Technology (ICT) to service providers

Baseband 6303 – For Macro Radio System

Highlights

• AC or DC
  • LTE (FDD & TDD supported)
  • 4000 connected users
  • 600 Mbps Downlink & 250 Mbps Uplink
  • 1000/500 VoIP users (FDD/TDD)
  • Up to 12 cells & 480 MHz antenna BW

• WCDMA
  • 576 CE Downlink & 2048 EUL CE Uplink
  • Up to 12 cell carriers
  • 180 HS Codes

• GSM – up to 24 TRX
• Mixed mode: G+W
• PoE out for e.g. microwave backhaul
• Backhaul cascading
• Size incl. support and PSU ~ 4,9 liters and weight ~ 5,1 kg
• 3x CPRI interfaces

AIR 6488

Highlights

• 48 VDC (3-wire or 2-wire)
• Advanced Antenna System (AAS)
• 64TX/64RX with 128 AE (B42 & B78M with 192 AE)
• Up to 200W
• EIRP up to 76 dBm
• Up to 100 MHz IBW
• Up to 3 carriers NR and/or LTE
• Max total carrier BW is 100MHz for NR, or 60MHz for LTE
• 3 x 10 Gbps eCPRI

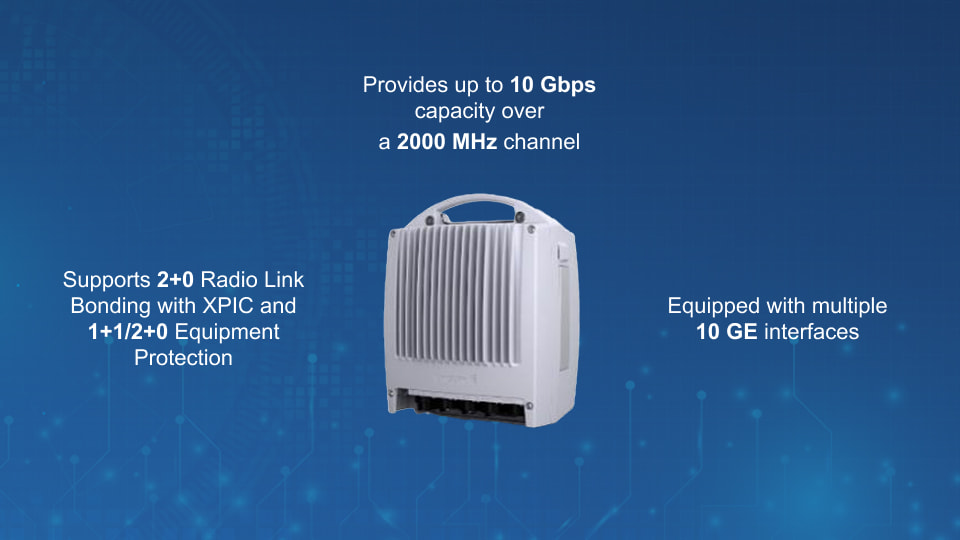

MINI-LINK 6352 – Very High Capacity Microwave

MINI-LINK 6352 is an all outdoor microwave node, and part of the successful MINI-LINK portfolio.

MINI-LINK 6352 provides up to 10 Gbps capacity over a 2000 MHz channel in the E-band (70/80GHz). MINI-LINK 6352 also supports 2+0 Radio Link Bonding with XPIC and 1+1/2+0 Equipment Protection (EQP) as well as Multi-Band Booster configurations together with MINI-LINK 6600/TN. For maximum connectivity, MINI-LINK 6352 is equipped with multiple 10 GE interfaces.

MINI-LINK 6352 has an embedded L2 switch, enabling aggregation and switching between all traffic ports, that makes it ideal for multiple combinations of mobile backhaul solutions. Use it as an all outdoor solution, aggregating multiple south-bound directions to one high capacity northbound direction. MINI-LINK 6352 is also suitable for cascading or as a repeater solution. It can also be connected to any other MINI-LINK indoor unit using available Ethernet ports.

MINI-LINK 6600 – High Capacity Node and Radio Link

MINI-LINK 6600 is the high capacity indoor node in a split-mounted microwave system. It supports switching capacity up to 90 Gbps and market leading split mount Radio Links up to 2.5Gbps using 112MHz and 4096QAM modulation. It also supports 10G interfaces for high capacity interconnect or use of very high capacity E-band radio links.

MINI-LINK 6600 has an integrated Ethernet switch/router supporting Customer and Provider mode switching and IP Routing and MPLS L3 VPN.

In MINI-LINK 6600, compact nodes as well as modular nodes using plug-in units are available. This makes it easy to customize configurations. The full range of MINI-LINK outdoor units can easily be combined in many different ways: traditional frequencies (6-42 GHz), Vband 60 GHz, E-band 70/80 GHz, single and dual carrier, Coax and Ethernet interface.

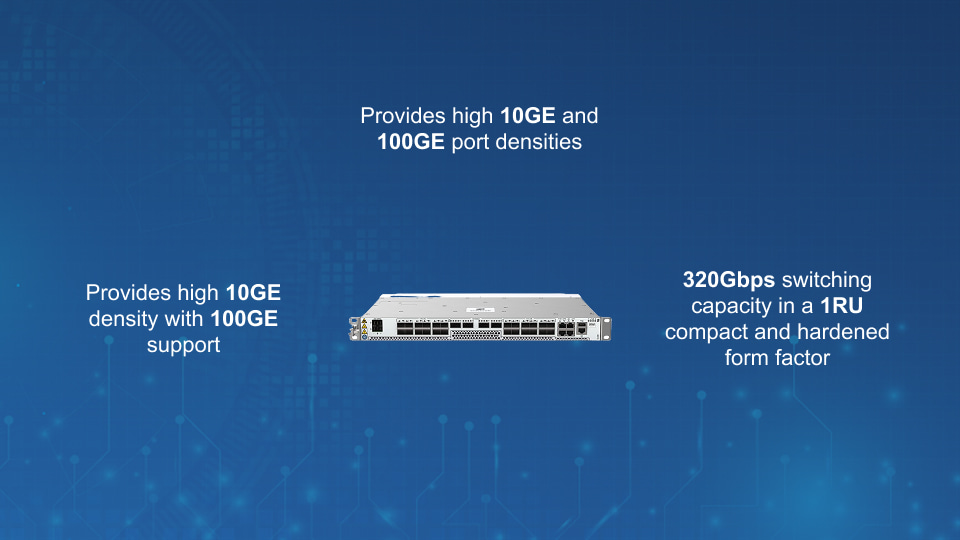

Router 6675

The Router 6675 is a high capacity pre-aggregation and aggregation router, designed to enable high quality network service delivery while at the same time lowering operating costs through features such as a completely filter-less mechanical design. It provides high 10GE and 100GE port densities in a compact and hardened 1RU form factor enabling lower rental costs and lower OPEX. It supports VPN services over IP/MPLS networks, service provider SDN, service exposure using NETCONF/YANG, extensive quality of service and precise synchronization features.

The Router 6675 provides high 10GE density with 100GE support and 320Gbps switching capacity in a 1RU compact and hardened form factor enabling lower rental costs and lower OPEX.

LTE-A enhancements such as COMP and e-ICIC that enable efficient use of spectrum have strict synchronization requirements. The Ericsson synchronization solution comes pre-verified to work with Radio.

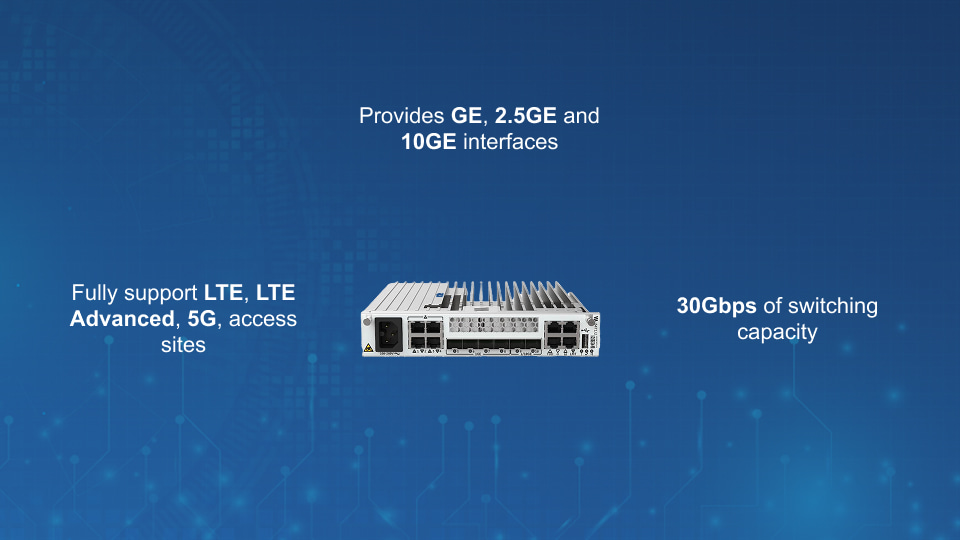

Router 6471

The Router 6471 is an ultra-compact and temperature hardened cell site router, designed to enable high quality network service delivery while at the same time lowering operating costs through features such as a completely fan-less and filter-less mechanical design. It provides GE, 2.5GE and 10GE interfaces with right cost points, small footprint and superior synchronization features.

The Router 6471 has strong security features such as IPSec, vendor credential and vendor software authentication ensuring data security even in insecure environments.

With 30Gbps of switching capacity, the Router 6471 delivers performance needed to fully support LTE, LTE Advanced, 5G, access sites for years to come.
